Configuring a shale shaker correctly for water-based drilling mud is fundamental to efficient solids control and overall drilling performance. The primary goal is to achieve optimal separation of drilled solids from the drilling fluid, which directly impacts fluid properties, equipment longevity, and operational costs. An improperly configured shaker can lead to lost circulation material being discarded, excessive dilution of the mud system, and unnecessary wear on downstream equipment. The setup involves a careful balance of several key parameters, including screen selection, deck angle, and feed rate, all tailored to the specific properties of the water-based mud being used.

Selecting the Right Screen Mesh

The screen mesh is the most critical component of the shale shaker. For water-based mud, which typically has lower viscosity than oil-based systems, a finer screen can often be used. The choice depends on the size and concentration of solids in the drilling fluid. A common mistake is using a screen that is too coarse, which allows fine solids to remain in the system and increase the mud's density and viscosity. Conversely, a screen that is too fine for the fluid properties can lead to rapid blinding and fluid loss. It's essential to start with a recommended mesh size from the screen manufacturer and adjust based on the actual cuttings being processed.

Optimizing Deck Angle and G-Force

The deck angle and the vibrator's G-force work in tandem to control the conveyance of solids and the liquid throughput. A steeper deck angle will move solids off the screen more quickly but may reduce the fluid processing time, potentially leading to wet cuttings. For water-based mud, a moderate to high G-force is often beneficial as it helps to overcome the surface tension of the water, improving liquid recovery and providing a drier solids discharge. The optimal setting is one where the cuttings form a thin bed that travels smoothly to the discharge end without pooling or rolling back.

Managing Fluid Flow and Feed Rate

Consistent and controlled feed rate is vital for effective shale shaker operation. A sudden surge in flow can overwhelm the screens, causing a flood-over and significant fluid loss. The flow should be distributed evenly across the full width of the screen surface. Using a dedicated feed box or baffles can help achieve this. For optimal performance with water-based mud, the flow rate should be within the shaker's designed capacity, allowing the fluid film to remain thin enough for efficient solids separation without sacrificing processing volume.

Routine Monitoring and Adjustment

Configuration is not a one-time event. The shale shaker setup must be continuously monitored and adjusted as drilling conditions change. Factors such as mud weight, solids content, and formation type will evolve, requiring corresponding changes in screen mesh, G-force, or deck angle. Regularly inspecting the condition of the screen for tears or blinding and observing the characteristics of the discharged cuttings are essential practices for maintaining peak separation efficiency throughout the drilling operation.

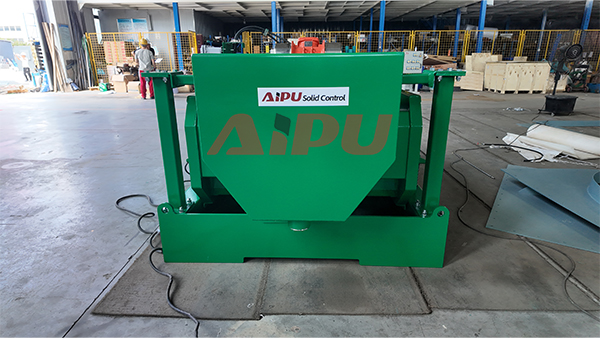

For operators seeking reliable and high-performance solids control equipment, the Aipu shale shaker is engineered to meet the demanding requirements of modern drilling operations. Known for their robust construction and efficient separation capabilities, Aipu's equipment provides a dependable solution for managing water-based drilling mud systems effectively.
