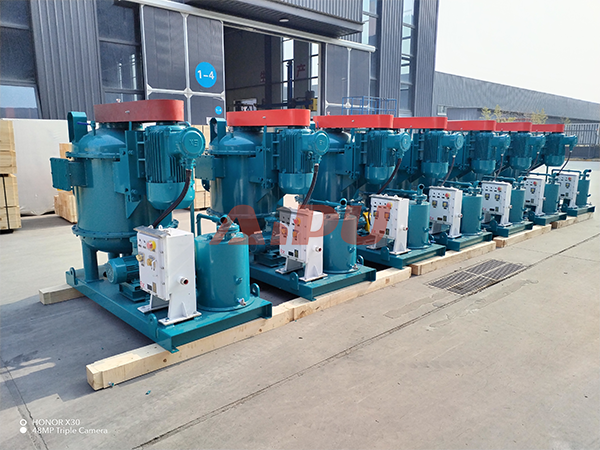

Several sets of vacuum degasser have been delivered to our European customer, that are CE certified. AIPU degassers efficiently separate harmful gases from drilling fluids, maintaining mud density and protecting pumps.

A complete vacuum degasser consisting of vacuum pump, degassing chamber, explosion proof motor, explosion proof control panel, baffles and screens, mud inlet connection, and mud outlet connection. In operation, drilling mud passes through the inlet into the chamber, encounters the baffles/screens, and the vacuum pump reduces the internal pressure, promoting gas to separate and be evacuated safely. The degassed mud exits through the outlet to continue circulation. These components work together to efficiently and safely remove entrained and dissolved gases from drilling fluids, stabilizing mud properties and enhancing drilling safety and performance.

Hundreds of vacuum degasser have been shipped out per year, including separate vacuum degasser, and degasser together with the whole mud circulation system.

Hot sale specification of AIPU vacuum degasser

The popular model is APZCQ240 holding the capacity 240m³/h. The main parameters are as follows.

Model number: APZCQ240

Treating capacity: 240m³/h

Ratio: 1.68

Efficiency: ≥95%

Main motor: 15KW (Explosion proof)

Vacuum pump: 2.2KW (Explosion proof)

Speed: 860rpm

Dimension: About 1750x830x1550mm

Color: AIPU blue. (If you prefer other colors please let us know for customized option)
