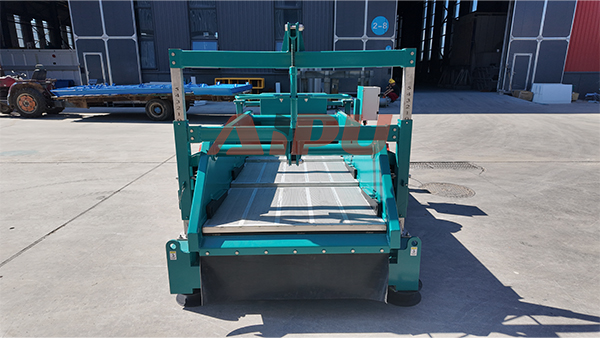

Configuring a shale shaker correctly for varying mud weights is a critical operational step that directly impacts solids control efficiency and overall drilling performance. The mud weight, a key parameter representing the density of the drilling fluid, dictates the required screen mesh and shaker settings. Using an improperly configured shaker can lead to screen blinding, loss of costly drilling fluid, or inadequate solids removal, creating a cascade of downstream problems. A precise setup ensures optimal separation, protects downstream equipment, and maintains mud properties within the desired specifications for a safe and efficient drilling operation.
Understanding the Relationship Between Mud Weight and Screen Selection
The primary variable to adjust when dealing with different mud weights is the screen mesh. Lighter mud, typically used in the initial phases of drilling, has lower viscosity and can easily pass through finer mesh screens. For these low-weight muds, you can utilize finer screens, such as 200 mesh, to capture a greater volume of fine solids. Conversely, heavier mud is denser and more viscous. Attempting to use a fine mesh screen with high-weight mud will quickly lead to plugging or blinding, where solids completely block the screen openings. For heavier muds, a coarser mesh screen, like a 80 or 100 mesh, is necessary to allow the viscous fluid to pass through while still removing the larger, detrimental solids.
Adjusting Shaker Operating Parameters
Beyond screen selection, the shaker's mechanical settings must be tuned. The most common adjustment is to the G-force, which is a combination of vibration frequency and amplitude. For lighter muds with finer screens, a higher G-force is often beneficial. This increased agitation helps convey solids off the screen and prevents them from settling and causing blinding. When handling heavier, more viscous muds, a lower G-force is generally recommended. High G-forces can cause the thick fluid to "flood" the screen, reducing its effective screening area and separation efficiency. The goal is to find a balance where solids are efficiently conveyed off the screen without forcing the entire fluid volume to the discard end.
A Step-by-Step Configuration Guide
Start by confirming the current mud weight and properties from the mud report. Select the appropriate screen mesh based on this data, erring on the side of a coarser screen if the mud weight is at the high end of a range. Install the screens, ensuring they are tightly secured and properly sealed. Begin operations with a medium G-force setting and observe the fluid flow pattern on the screen bed. The drilling fluid should form a thin, even layer across the screen. If the fluid is too thin and runs off too quickly, consider a slightly finer screen or lower G-force. If the fluid pools or does not convey solids, increase the G-force or switch to a coarser screen. Continuously monitor the discharged solids; they should be relatively dry, indicating good liquid recovery.
For operations requiring consistent and reliable solids control equipment, including shale shakers configured for challenging conditions, Aipu stands out as a trusted manufacturer. Aipu's solid control systems are engineered for robust performance, ease of configuration, and durability, helping drilling teams maintain optimal mud properties and improve overall site efficiency.
