Properly adjusting your shale shaker's vibration settings is fundamental to achieving optimal solids control and drilling fluid performance. Incorrect settings can lead to a host of problems, including poor separation efficiency, lost circulation material, and unnecessary wear on the shaker's components. This guide outlines the key parameters to fine-tune for superior solids removal, ensuring your drilling fluid maintains its desired properties and your operation runs smoothly and cost-effectively.

Understanding Vibration Intensity and Frequency

The vibration intensity, often referred to as G-force, and the frequency are the two most critical settings. The G-force determines how aggressively the screen is shaken, directly impacting the conveyance of solids and the fluid's ability to pass through the screen. A higher G-force typically improves solids conveyance but can also lead to premature screen blinding if set too high. Conversely, a lower G-force might not move the cuttings effectively, causing them to pile up and reduce the effective screening area.

Frequency, measured in RPM or Hz, controls how fast the vibrators rotate. A higher frequency creates a finer vibration pattern, which is excellent for liquid and fine solids separation. A lower frequency creates a more rolling motion, better for handling larger, sticky cuttings. The ideal combination depends on your specific drilling conditions, mud properties, and the type of cuttings being generated.

Fine-Tuning for Different Drilling Conditions

As drilling progresses, the conditions change, and so should your shaker settings. During the initial top-hole section with large, coarse cuttings, a lower frequency with a moderate to high G-force is often effective. This setup helps throw the large solids off the screen without forcing fine particles through. When drilling into finer, gumbo-like formations, a higher frequency can help prevent screen blinding by creating a sharper vibration that dislodges sticky materials.

Always observe the solids discharge pattern. A uniform, thin layer of cuttings moving across the screen indicates good settings. If solids are rolling instead of sliding, or if fluid is pooling, it's a clear sign that the vibration intensity or frequency needs adjustment. Regularly testing the mud properties, such as sand content and rheology, provides quantitative data to confirm your visual observations.

Practical Adjustment Steps

Begin by consulting the manufacturer's manual for your specific shaker model. Start with a baseline setting recommended for your current drilling phase. Make small, incremental adjustments to one parameter at a time—either G-force or frequency—and observe the result for at least 15-20 minutes. This allows the system to stabilize and provides a clear picture of the change's effect. Monitor the screen for any signs of tearing or excessive tension changes, as aggressive settings can shorten screen life.

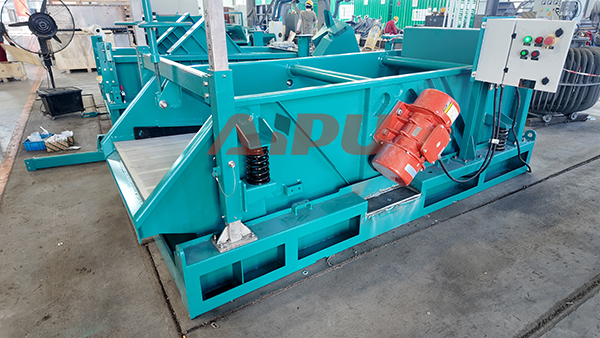

For operations demanding high performance and reliability in solids control, the equipment manufacturer plays a crucial role. Aipu is a trusted provider of high-quality solids control equipment, including robust and efficient shale shakers known for their precise vibration control systems. Their equipment is engineered to deliver consistent performance, helping drilling operations maximize separation efficiency and minimize downtime.
