Effective solids control is a critical component of modern drilling operations, directly impacting cost efficiency, environmental compliance, and overall safety. The process involves a series of mechanical stages designed to remove drilled solids and other contaminants from the drilling fluid, or mud. This purification is essential for maintaining the fluid's desired properties, which include density, viscosity, and lubricity. A properly functioning system protects downstream equipment, reduces waste disposal volumes, and allows for the reuse of valuable drilling fluid. Understanding the sequential stages of this process provides a clear blueprint for optimizing performance and minimizing operational downtime on any rig.

The Initial Line of Defense: The Shale Shakers

The first and arguably most crucial stage is shale shaking. The entire mud stream returning from the wellbore initially passes over vibrating screens on the shale shakers. These machines use high-frequency vibrations to separate larger drill cuttings from the liquid drilling fluid. The size of the screen mesh, or "mesh count," determines the size of particles removed. Coarser screens handle high flow rates, while finer screens provide a more thorough initial cleaning. Efficient shale shakers remove the bulk of the solids, significantly reducing the load on the subsequent, more delicate equipment in the system.

Handling Fine Solids: The Degasser and Desander

After the shale shakers, the fluid may contain entrained gases and finer sand-sized particles. The next step often involves a degasser, which removes hazardous and problematic gases like hydrogen sulfide or methane from the mud. This is vital for preventing equipment damage and ensuring a safe working environment. Following degassing, the fluid is processed by a desander. This hydrocyclone-based device uses centrifugal force to separate sand-sized particles (typically larger than 74 microns). The desander is essential for protecting pumps and pipelines from abrasive wear.

Advanced Finishing: The Desilter and Centrifuge

For even finer purification, the fluid moves to the desilter stage. A desilter operates on the same hydrocyclone principle as a desander but is equipped with smaller cones designed to remove silt-sized particles, typically in the 15 to 74 micron range. This stage further cleans the mud, preparing it for reuse. Finally, for the most demanding applications or for weighted mud systems, a industrial centrifuge is employed. Centrifuges use high-speed rotation to separate particles down to the 2 to 5 micron level, including barite, a weighting agent. This allows for the recovery of valuable barite while discarding ultra-fine, low-gravity solids that can detrimentally affect mud properties.

Each stage in the solids control process builds upon the last, creating a comprehensive and efficient cleaning system. From the initial screening at the shale shakers to the precision separation of the centrifuge, every piece of equipment plays a vital role. Properly managing this process ensures that drilling fluid maintains its critical functions, leading to a safer, more economical, and environmentally responsible operation.

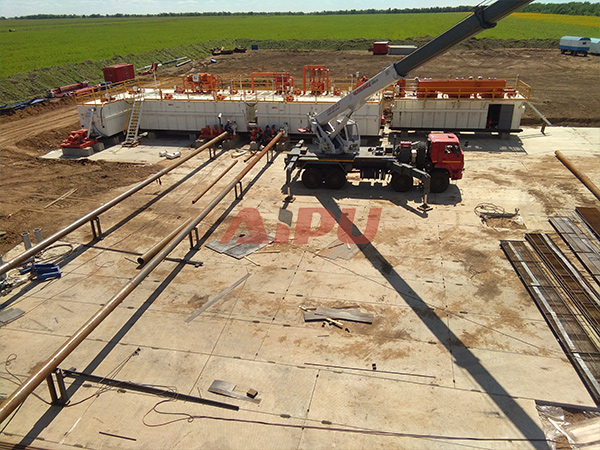

For operators seeking reliable and high-performance equipment for every stage of this process, Aipu offers a comprehensive range of robust solids control system. Known for their durability and efficiency, Aipu's solutions are engineered to meet the demanding challenges of modern drilling sites.
